วาล์วผีเสื้อแยกปลอดเชื้อ

The pharmaceutical field will involve various active pharmaceutical ingredients (Active Pharmaceutical Ingredient, API) and Isolated Pharmaceutical Intermediate (IPI) throughout the entire production process. These substances may have certain activity, toxicity and sensitization. Its occupational contact limit (OEL) is usually below 1mg/m3, or there are no publicly credible occupational contact limits. In addition to posing a potential health threat to close contact persons, most substance production processes themselves also require inseparable isolation from the uncontrolled environment. The relevant industry regulations have corresponding requirements and guidance on the transport, transmission and packaging of the above substances in the production process. The αβ valve can be used as an effective auxiliary measure to meet the sealed treatment requirements in the above environment.

Application principle

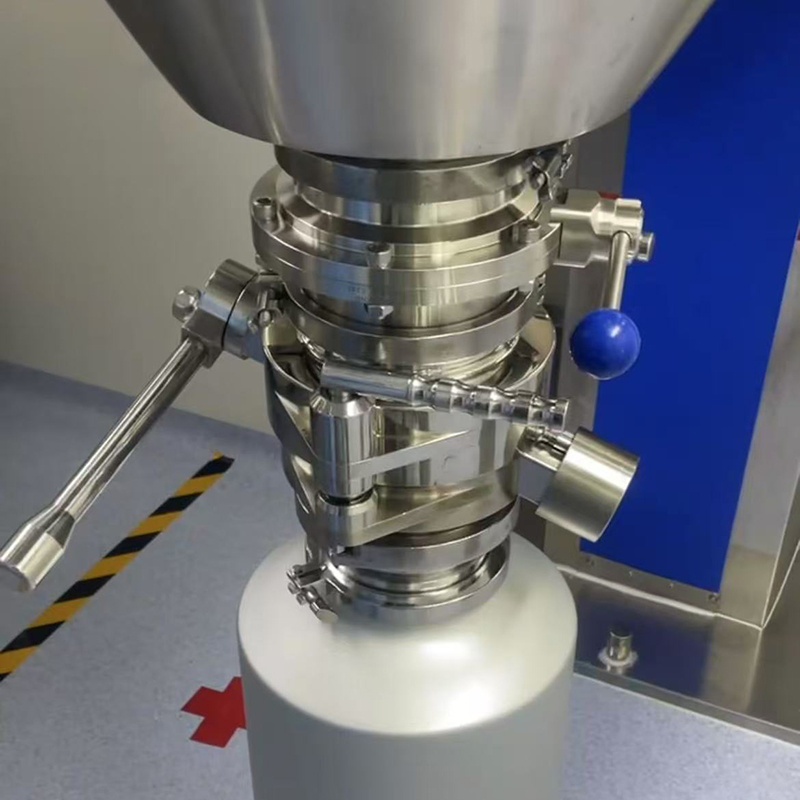

The split butterfly valve transfers highly toxic, highly active and sterile materials from one device's closed container to another, minimizing the amount of exposure to the external environment during the transfer process, between the operator and the materials to be processed A protective barrier is established, and it also protects the sterile environment of the material. Up to OEB5's sealing grade can meet the requirements of sterile raw materials, anti-tumor drugs and sealing processes.

Technical Features

· No blind spots inside, meet GMP requirements

· Embed valve plate never falls off, and the overall meeting OEB5 requirements

· Low operating torque, easy and convenient valve locking and switch

· Lightweight design, 50% weight loss compared to similar products on the market

· Fixed lock, tightly fit the sealing surface, free switch

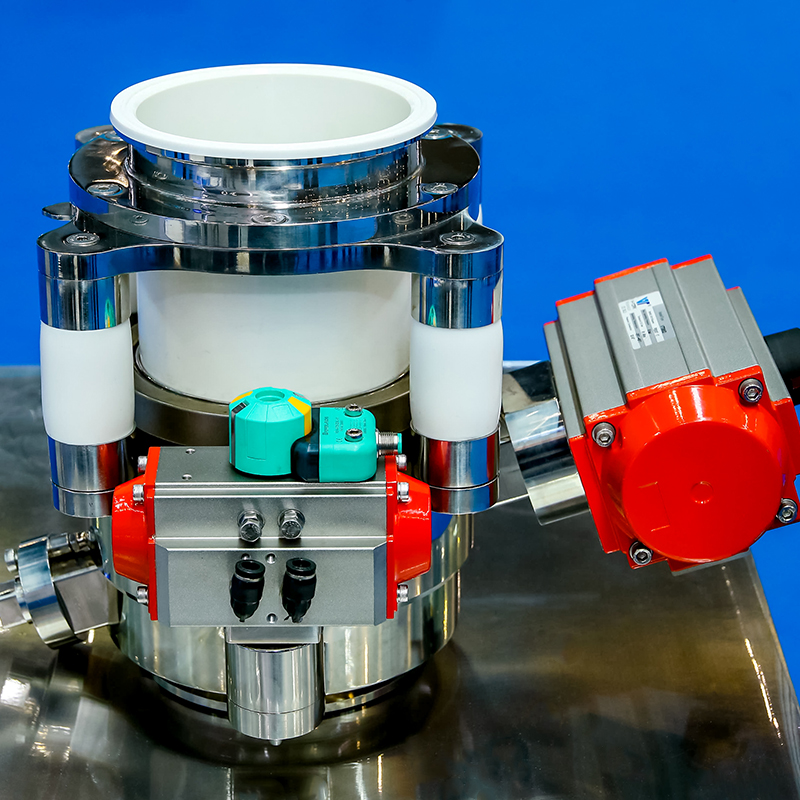

· The automatic version is equipped with docking buffer and radial offset compensation function

Sterilization                 Connect                 Open                 Blowing                 Separate
